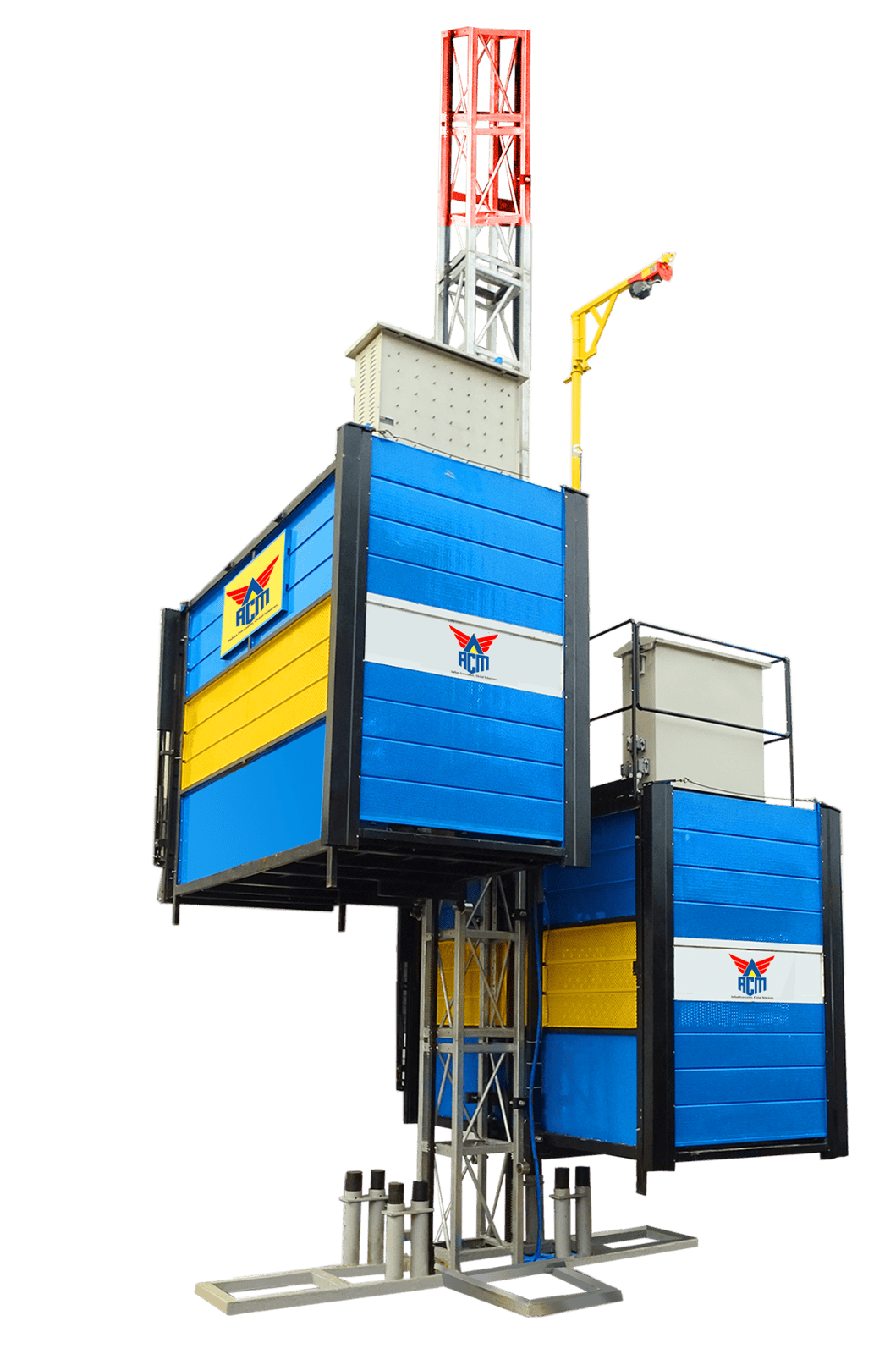

Twin Cage Passenger & Material Hoist
SPM 200-200V
Passenger & Material Hoist
SPM-200L
Passenger & Material Hoist
SPM-150V

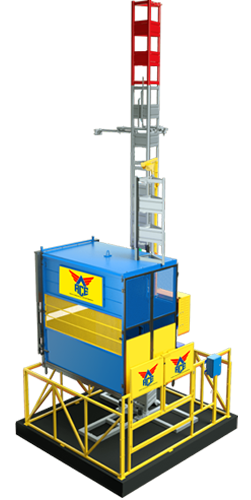

Passenger & Material Hoist
SPM - 100V
Salient Features - Passenger and Material Hoists
Mast & Wall Tie
- Mast made from high-quality square tube with sheet metal bend angle, based on FE-analyzed design.
- Fabricated using fixtures for uniform quality and dimensions.
- Hot-dip galvanized for corrosion resistance.
Finite Element Analysis (FEA)

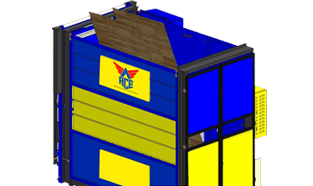

Top open Roof feature, you can carry big and odd sizes of door frames, scaffoldings, Plywood sheets, Marble and Glass slabs to heights.

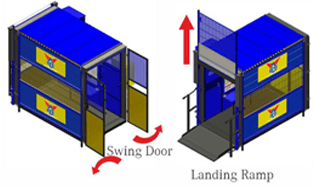

Swing Type Entry & Exit Door
Exit door side rails have been provided for safe transit of people, which eliminates the mishaps caused by making a special barricade on each floor.

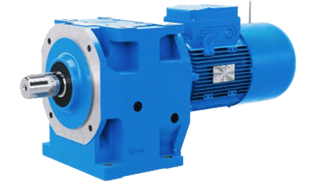

Heli Bevel Spiral Gears
ACE provides world's best Nord/ Rossi Planetary Design Gearbox, which gives better efficiency and 50% power saving.

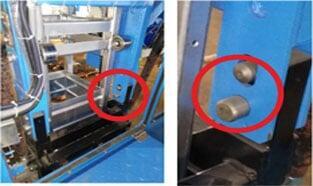

Additional Safety Pin
An additional safety pin between the cage and drive unit ensures extra passenger safety.

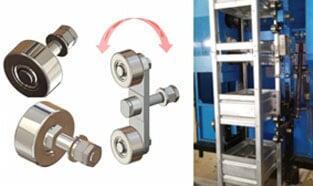

Hard Chrome Plating Roller
Hoist rollers are made of high-strength material with hard chrome plating to resist corrosion and enhance durability. Shaft eccentricity absorbs fabrication errors.

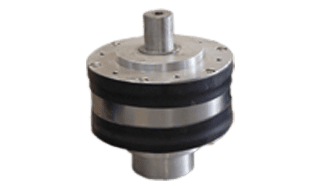

European Design Safety Device
- Latest advanced design given for highest factor of safety to protect against free fall of hoist.

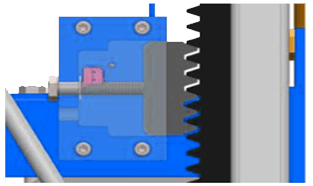

Mechanical Lock for Carriage
For additional safety during mast addition and Height Extension.
Rack searching limit switch
It is provided as an additional safety feature. Limit switch is provided to sense rack availability. Safety limit switch as it stops machine if rack is missing.
Top, Bottom, Slow Down & Final Limit Switches
These limit switches are provided to prevent over travel of machine and for safe operation. All limit switches are accessible from within the cage.
Variable Frequency Drive (VFD)
ACE provides Japanese make Mitsubishi VFD (variable frequency drive) as a standard fitment in all the hoists.
Floor Selections / HMI - Fault Indication
BENEFITS
- Touch screen HMI will be provided to select the floor number.
- The HMI provides a complete status of the machine, including fault alerts, machine running hours, floor position, overload detection, and more.
- Selected floor number and current floor number shown on display.

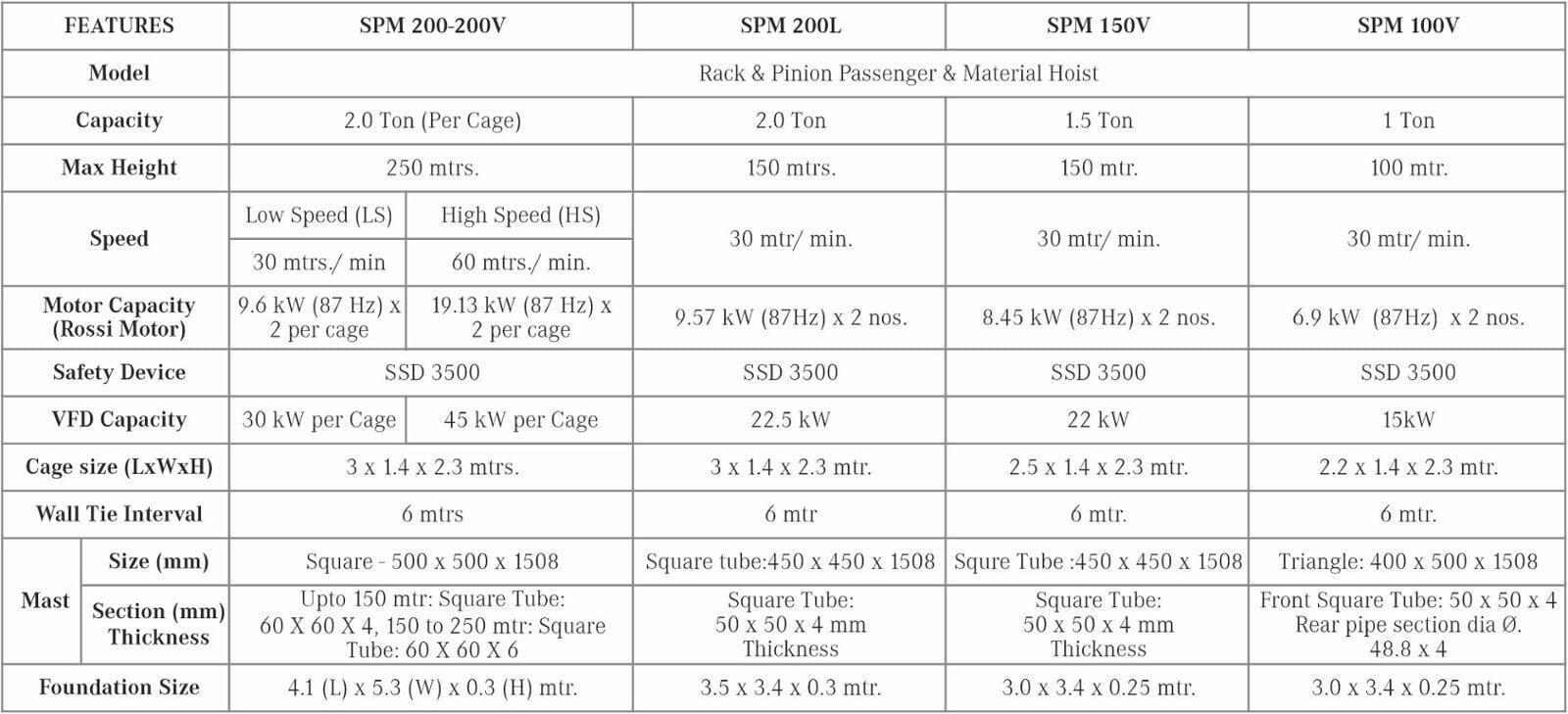

Technical Specifications - Passenger and Material Hoists
